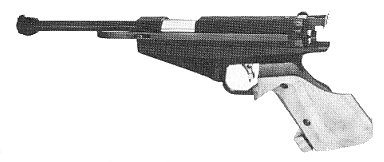

FEINWERKBAU MODEL 90
Sight Adjustments
If shots are high turn towards H (clockwise).
If shots are to the right turn towards R (clockwise).
1 click = 1.5mm @ 10m.
Rear sight gap is adjustable by winding the spindle in front of the rear sight blade.
Trigger Adjustments
1. Lock screw for holding trigger shoe on rail – allows fore and aft adjustment.
2. Lock screw to allow rotation of the trigger blade.
3. Trigger slack adjustment.
4. Trigger weight adjustment.
Battery tester
As this pistol uses an electronic trigger a battery tester is located at the bottom of the grip.
